Machining examples

A difference in accuracy and quality you can really feel during manual and automatic operation

■ Surface machining

Preliminary machining and finish machining of STAVAX, SKD-II and other die materials, as well as metallic materials such as SS, ceramics, etc., are possible. In addition to manual operation, plunge machining and traverse grinding are also possible by fully automatic operation.

■ Efficient machining

The rigid machine design ensures heavy-duty grinding with high stock removal.
A standard type for infeed of 2μm - 30μm through the SGM series for minimum infeed of 0.5μm is available.


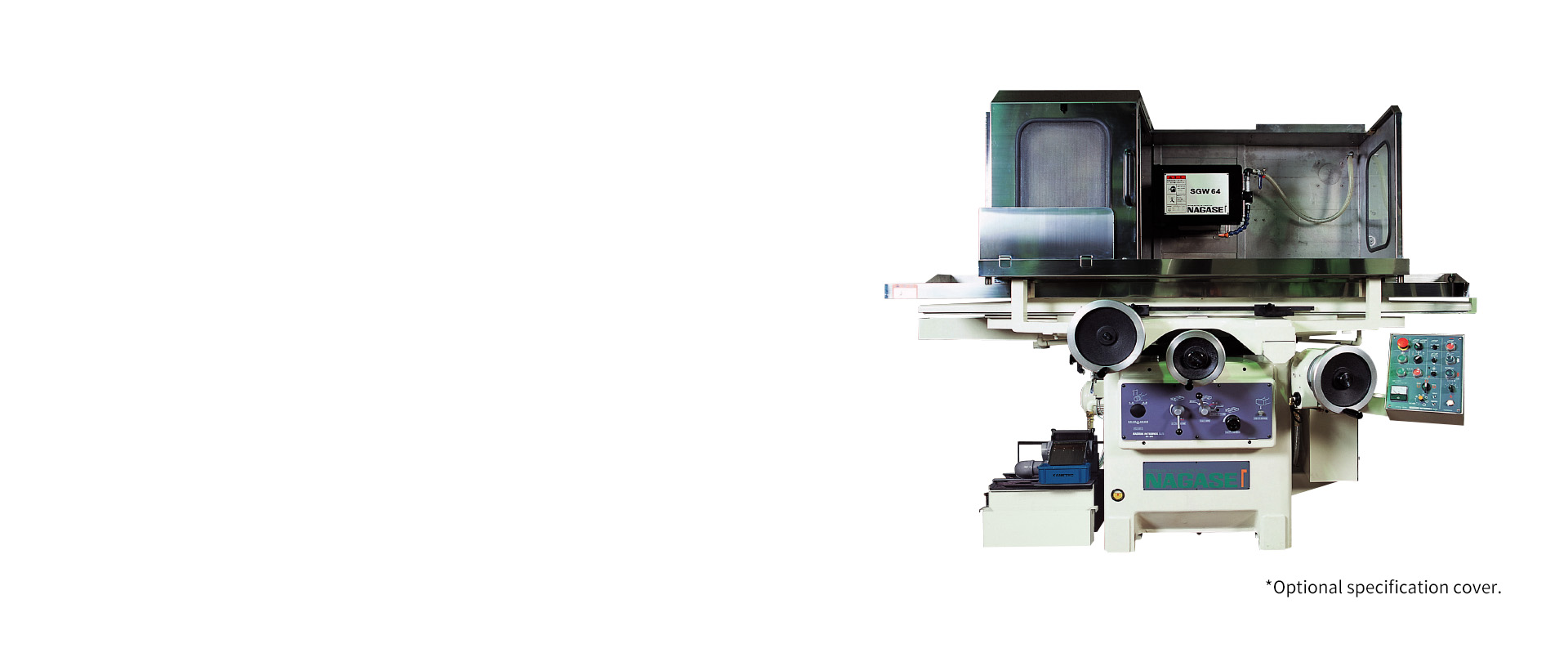

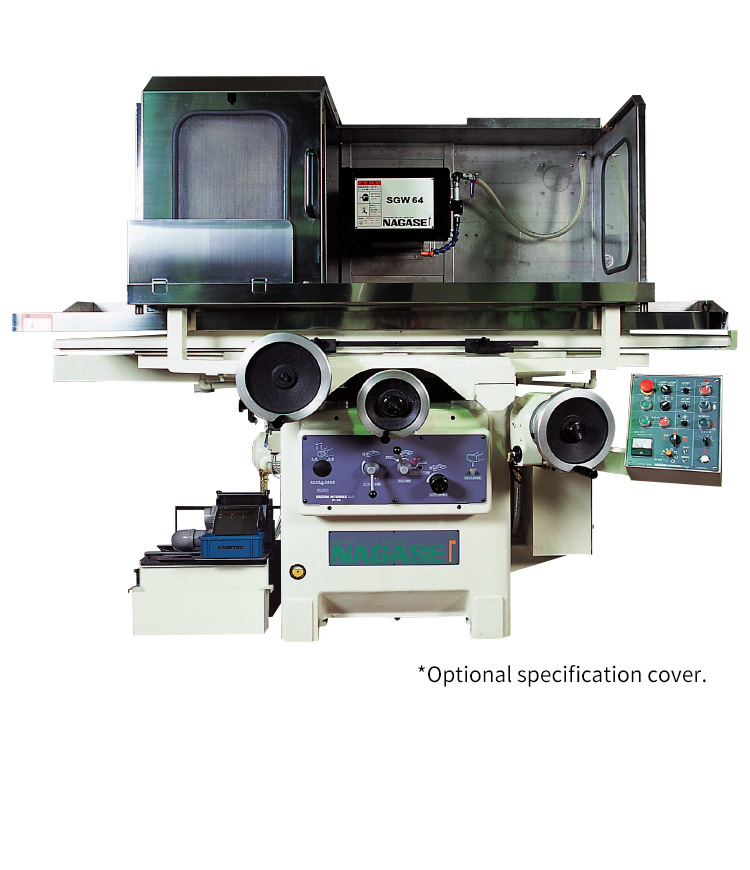

Excellent straightness, accurate infeed and rigid spindle The machine that makes you realize how high the Nagase’s basic performances are

1. A wide machining area and excellent straightness. These are the reasons for many users to select “superior accuracy”.

A large table work area ensures a broad range of grinding. The scraping surface, finished by skilled workman spending time and effort, and unique sliding surface design achieve unprecedented straightness accuracy with restricting a change in travelling line during right/left-table movement and no change in posture caused by the load. The saddle incorporates a Nagase original, ultra wide and ultra low friction V&V slideway.

2. Unique ultra shock-free reverse table for machining with an unprecedented level of quality

The original parts configuration enables smooth reverse rotation of the longitudinal table. This reduces influence on the grinding surface due to reverse shock and demonstrates high-quality machining that conventional general-purpose machines cannot achieve.

3. High-rigidity and high-precision spindle for finish machining of hard-to-machine materials through heavy-duty grinding

The spindle unit employs an super-precision angular contact bearing which supports the radial and axial load securely. It can be used for precision finish machining of hard-to-machine materials and for heavy-duty grinding using high-number grinding wheel. The Balance Vector (Doctor) NB-3012 for automatically measuring and correcting the balance of the rotating grinding wheel restricts rotational vibration of the grinding wheel and achieves quality machining. In addition, Nagase’s original hydrostatic bearing and ultra-low vibration motor can be mounted (optional).

4. High-rigidity column for submicron infeed

The column has a large width on the front/rear sides and a precision guide mechanism is employed to enhance rigidity in infeed. With SGM, the minimum infeed amount of the vertical axis can be set to 0.5μm. This micro infeed is also used for precision grinding with a high-number grinding wheel.

5. Main body designed to use less space and high rigidity

The main body is combined with the oil tank to save space. It is also designed to minimize heat accumulation on the table surface even after machining for a long time. The ribs are arranged appropriately to maintain rigidity of the body.

6. User-friendly operation panel and automatic grinding cycle

The display on the operation panel uses a combination of symbol marks and Japanese so even a beginner can operate it easily. Three kinds of automatic cycle grinding including step, traverse and plunge grindings are possible by simple operation procedure.

■ Shock-free horizontal table

Stroke adjustment for longitudinal reverse rotations is easily done.

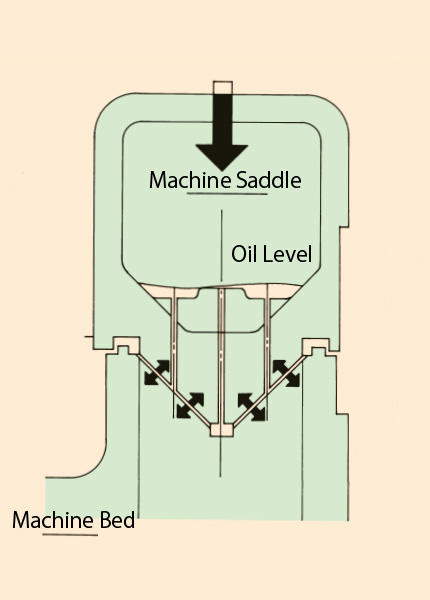

■ Nagase’s unique ultra-wide and ultra-low friction V&V slideway

The wide slideway has less load on the unit area so that the oil film on it becomes thin and reduces fluctuation.

■ Designed for high operability

The workpiece can be set efficiently, not only for manual operation but also for automatic operation.


■ New Balance Vector NB-3012

Accurate grinding is easily done through the display of vibration caused by wheel rotation.

■ Digital scale for vertical and cross axes

Accurate position display and improved machining accuracy are possible.

■nvac products: Diamond/CBN wheel in the NRX/NRXB series

■nvac products: General grinding wheels in the WAP series

nvac products:
Nagase will offer diamond/CGN wheels, WA/GC grinding wheels, dressers, flanges and filters according to customer’s grinding needs.

In addition to the above, a variety of options are available. For detailed information, please contact the Nagase sales office.


Model/item Size Chucking size Table movement amount
(in longitudinal and cross directions)
Table top surface
Spindle center
Min. unit in vertical direction Min. unit in cross direction Grinding wheel size
(OD x W x ID)
Grinding wheel spindle
    mm mm mm mm mm mm kW
SGW-M 52 500×200 610×235 500 W:0.002
0.02 φ180〜255×8〜19×φ50.8 2P
63 600×300 750×340 520 0.02 φ200〜355×25〜38×φ127 4P
64 600×400 750×440 520 0.02 φ200〜355×25〜38×φ127 4P
75 700×500 830×580 680 0.02 φ200〜355×25〜38×φ127 4P

■ Contents and specifications are subject to change without prior notice. The contents of description and pictures may contain optional items. To place an order, check the manufacture specifications for detailed contents.

■ Actual machine accuracy and machining accuracy described on this site may differ depending on the measurement and machining conditions.

■ For further details, you may request specifications, technical information, etc.

■ For resale or export of the product, contact us in advance. Exporting products requires designated procedures as determined by the Foreign Exchange and Foreign Trade Control Law.

■ This product must not be transferred for any purposes of use that prevents international peace and security, or used for one’s own purpose or by any third party.


For further information, please contact us. We will make a proposal according to your requests.

Customers who are thinking of introducing new facilities are welcome to ask us for test machining or to visit our factory. Please feel free to consult us. Inform us of your facility conditions, size and material of machining workpieces, machining time, etc., in details.
Sales personnel in your district will make a proposal designed to meet your requirements.
